Bau.Tools BlowerDoor has been especially developed for use in combination with the Minneapolis BlowerDoor measuring technology, together with an FLIR infrared camera. All-season testing procedure for detecting air leakages with BlowerDoor and thermography. The Bau.Tools software requires the use of the measuring system Minneapolis BlowerDoor Standard or Minneapolis BlowerDoor MiniFan with digital pressure gauge. Software (Download-Link) (1 licence) and reference guide available in DE/EN/FR. Needed accessories for the use of a DG-1000: - WLAN-N Repeater (Router) 3 G / 3,75 G, Akku powered 85.00 EUR *- Laptop rack 148.00 EUR *- Network cable on cable drum (CAT 7A S/FTP / 50 m) 160.00 EUR *- 2 Premium patch cables, red, 2 m each 12.00 EUR * - Thermographic camera (FliR) > compatible model on request

 With the FireProtection software and the Minneapolis BlowerDoor measuring system, you can easily and accurately determine extinction gas holding times in accordance with these international standards:  - ISO 14520:2006  - ISO 14520:2015 - EN 15004:2008 - EN 15004:2019 - VdS 2380:2019-03 - VdS 2381:2016-06 With the free program, you can work cloud-based on demand on several computers and with several employees of a team or a group of companies. The new pricing (see below) adapts to customer requirements and is easy to calculate. In addition, every new customer receives a free sample measurement and can thus familiarize themselves with the intuitively operated program. The detailed test report can be almost completely individualized and adapted to the company’s corporate design. This software package contains 5 start tokens, one token is required for each new project. The tokens are valid for one year and can be reordered at any time.    5 Token – 390 € 10 Token – 702 € 20 Token – 1,264 € 50 Token – 2,843 € 100 Token – 5,118 € 200 Token – 9,212 €

Package A1: Airtightness testing of ventilation systems according to EN 12599 (no BlowerDoor measuring system available) The Minneapolis Micro Leakage Meter (MLM) Measuring System has been developed in order to guarantee the functionality of ventilation systems by conducting airtightness tests of the duct system. With a measuring range of 0.17 to 78.5 m³/h, the MLM is also suitable for testing building components as well as small and highly airtight clean rooms. Shipment includes: Transport bag with MLM flow meter including 4 discs in a padded bag, calibration certificate (4 discs of 5 measuring points each), measuring software TECLOG MLM including test report (Download-Link), 2 hoses connecting plates for DuctBlaster fan, connecting hoses of 1 m and 3 m, 4 hose clamps, 5 connecting pieces for ventilation systems, DuctMask, set of rubber bladders, 1 capillary tube, tube set (red and blue of 3 m each, transparent of 10 m), reference guide available in DE, EN, FR, DuctBlaster including rings 1 - 4 and calibration certificate, speed controller, DG-1000 with calibration certificate, reference guide, transport bag.

Package A2: Airtightness testing of ventilation systems according to EN 12599 (BlowerDoor measuring system MiniFan available) The Minneapolis Micro Leakage Meter (MLM) Measuring System has been developed in order to guarantee the functionality of ventilation systems by conducting airtightness tests of the duct system. With a measuring range of 0.17 to 78.5 m³/h, the MLM is also suitable for testing building components as well as small and highly airtight clean rooms. Shipment includes: Transport bag with MLM flow meter including 4 discs in a padded bag, calibration certificate (4 discs of 5 measuring points each), measuring software TECLOG MLM including test report (Download-Link), 2 hoses connecting plates for DuctBlaster fan, connecting hoses of 1 m and 3 m, 4 hose clamps, 5 connecting pieces for ventilation systems, DuctMask, set of rubber bladders, 1 capillary tube, tube set (red and blue of 3 m each, transparent of 10 m), reference guide available in DE, EN, FR.

Package B1: Airtightness testing of ventilation systems, airtightness testing of small buildings (no BlowerDoor measuring system available) The Minneapolis Micro Leakage Meter (MLM) Measuring System has been developed in order to guarantee the functionality of ventilation systems by conducting airtightness tests of the duct system. With a measuring range of 0.17 to 78.5 m³/h, the MLM is also suitable for testing building components as well as small and highly airtight clean rooms. Shipment includes: Transport bag with MLM flow meter including 4 discs in a padded bag, calibration certificate (4 discs of 5 measuring points each), measuring software TECLOG MLM including test report (Download-Link), 2 hoses connecting plates for DuctBlaster fan, connecting hoses of 1 m and 3 m, 4 hose clamps, 5 connecting pieces for ventilation systems, DuctMask, set of rubber bladders, 1 capillary tube, tube set (red and blue of 3 m each, transparent of 10 m), reference guide available in DE, EN, FR, Measuring System BlowerDoor MiniFan for airtightness testing of small buildings.

Package B2: Airtightness testing of ventilation systems, airtightness testing of buildings (BlowerDoor measuring system Standard available) The Minneapolis Micro Leakage Meter (MLM) Measuring System has been developed in order to guarantee the functionality of ventilation systems by conducting airtightness tests of the duct system. With a measuring range of 0.17 to 78.5 m³/h, the MLM is also suitable for testing building components as well as small and highly airtight clean rooms. Shipment includes: Transport bag with MLM flow meter including 4 discs in a padded bag, calibration certificate (4 discs of 5 measuring points each), measuring software TECLOG MLM including test report (Download-Link), 2 hoses connecting plates for DuctBlaster fan, connecting hoses of 1 m and 3 m, 4 hose clamps, 5 connecting pieces for ventilation systems, DuctMask, set of rubber bladders, 1 capillary tube, tube set (red and blue of 3 m each, transparent of 10 m), reference guide available in DE, EN, FR. DuctBlaster fan including rings 1 - 4 and calibration certificate, fan cap, speed controller, Blower Door panel (standard size), reference guide, transport bag.

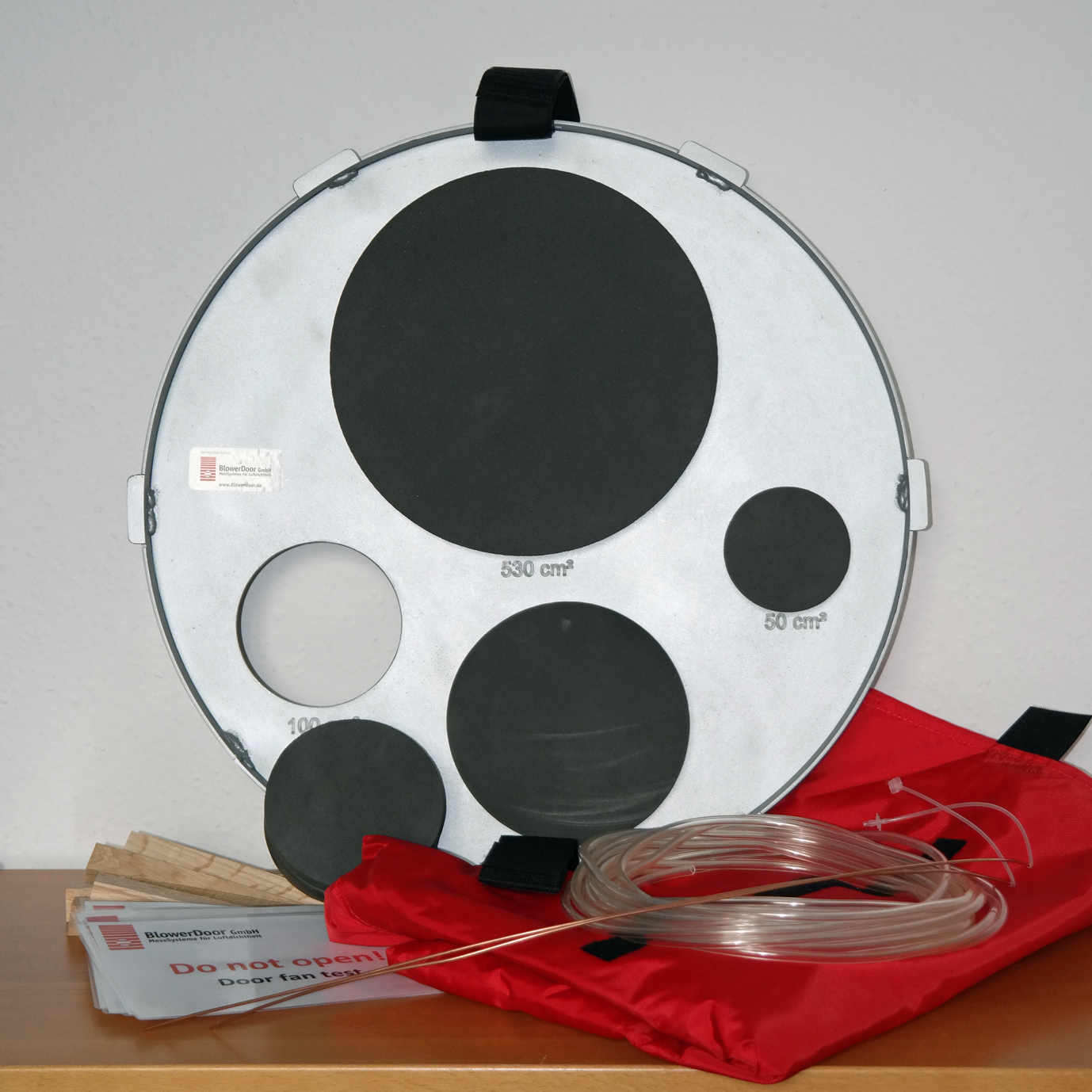

Required accessories for FireProtection 2021:  BlowerDoor panel with 2 openings, Field Check ring, 4 sealing plugs, 6 indi-cating labels, 10 timber wedges, 2 capillary tubes of 40 cm length each, 2 tubes 10 m length each, 2 velcro straps

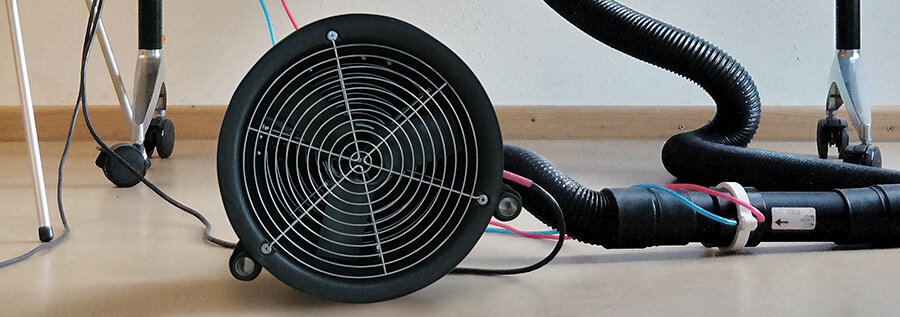

- to measurement system BlowerDoor MiniFan -  Inclusive rings 1-4, connection trim, speed controller, BlowerDoor panel (standard size) for DuctBlaster, fan cover, calibration certificate, reference guide, and transport bag. The software TECTITE Express 4.1 or 5.1 is needed (see below. Please order separately if required.)

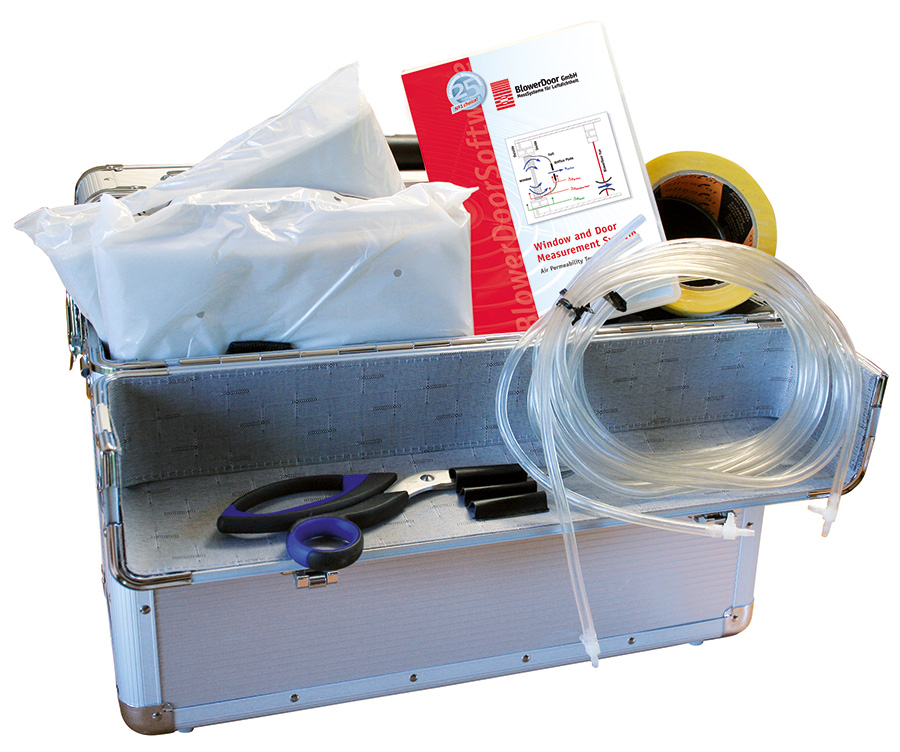

Air permeability test of windows and doors (on-site check) The airtightness of outside windows and doors is an important criterion for achieving an airtight building envelope. The Window and Door Measurement System developed by BlowerDoor GmbH allows you to determine the joint permeability of building components in a simple and accurate way. On the basis of the measurement results windows and doors can be classified in accordance with EN 12207 (windows and doors, air permeability-classification). Please note: The Window and Door Measurement System requires the laptop-controlled use of the Minneapolis BlowerDoor. Shipment includes: Robust transport case with 4 specially manufactured orifice plates of various sizes, measuring software in English (download link) with detailed reference guide (available in English, French, German) as well as 5 tarpaulins, scissors and cutter, 5 rolls of PVC adhesive tape, 3 tubes with T-pieces, 4 capillary tubes.
