Product information "Window and Door System"

Air permeability test of windows and doors (on-site check)

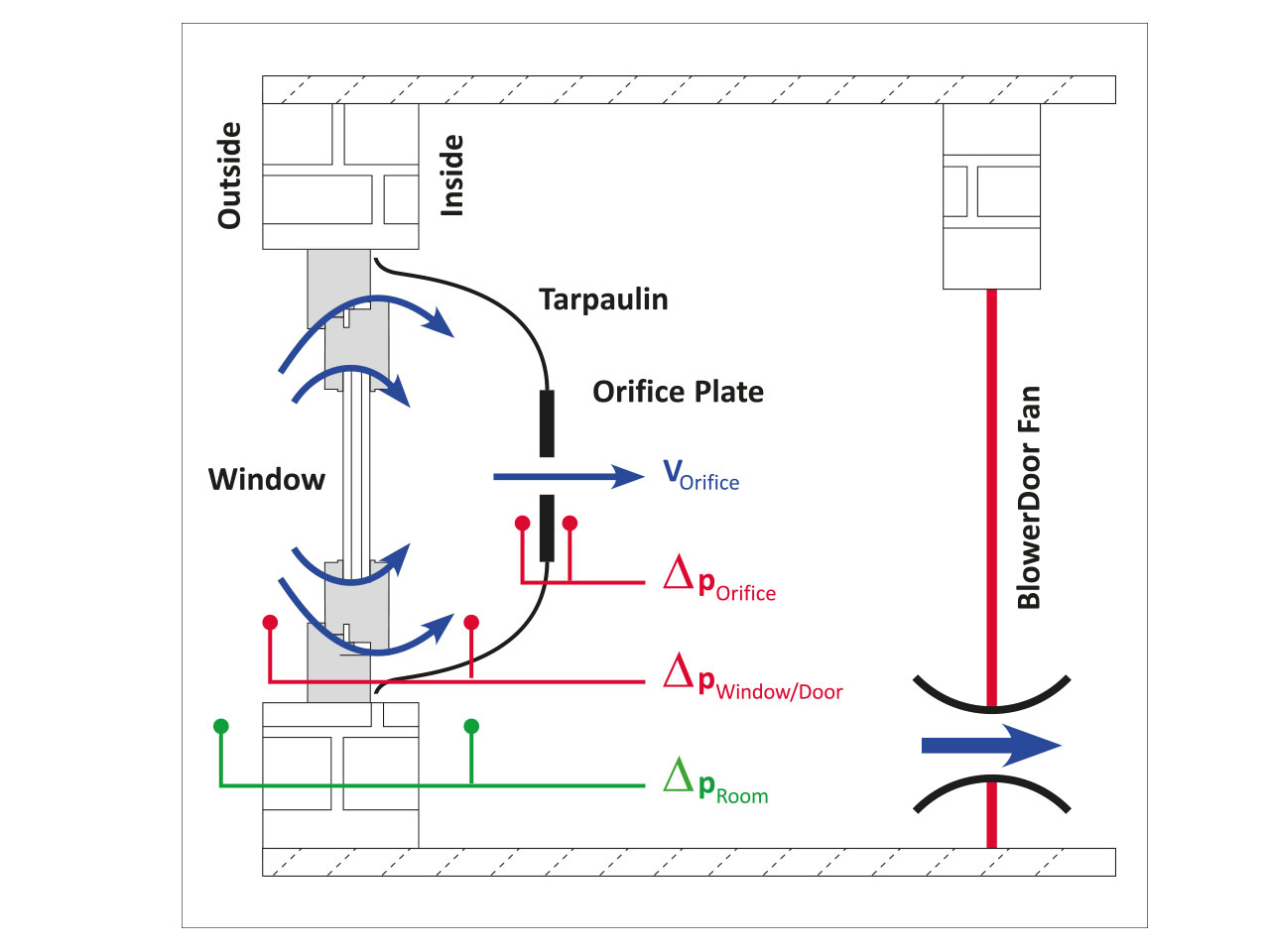

The airtightness of outside windows and doors is an important criterion for achieving an airtight building envelope. The Window and Door Measurement System developed by BlowerDoor GmbH allows you to determine the joint permeability of building components in a simple and accurate way. On the basis of the measurement results windows and doors can be classified in accordance with EN 12207 (windows and doors, air permeability-classification).
Please note: The Window and Door Measurement System requires the laptop-controlled use of the Minneapolis BlowerDoor.

Shipment includes: Robust transport case with 4 specially manufactured orifice plates of various sizes, measuring software in English with detailed reference guide (available in English, French, German) as well as 5 tarpaulins, scissors and cutter, 5 rolls of PVC adhesive tape, 3 tubes with T-pieces, 4 capillary tubes.
